The Manual J form serves as a critical tool in the design and installation of heating, ventilation, and air conditioning (HVAC) systems, particularly for residential buildings in Utah's unique climate. This form requires a comprehensive load calculation, which must be conducted on a room-by-room basis to ensure accuracy. The Manual J form encompasses various key elements, including design conditions, heat loss, and gain calculations. It specifies parameters such as outside and inside dry bulb temperatures, as well as the entering wet bulb temperature, which is vital for selecting cooling equipment. Additionally, the form addresses infiltration methods and construction quality, which significantly impact the overall energy efficiency of the HVAC system. It also details the specifications for heating and cooling equipment, including furnace and air conditioning unit models, their respective efficiencies, and required adjustments based on altitude. The Manual J form ultimately provides a structured summary of the heating and cooling loads, ensuring that the HVAC systems are appropriately sized and capable of maintaining comfort within the home.

Manual J Example

Building Services & Civil Enforcement slcpermits.com

801-535-6000, fax 801-535-7750

451 South State Street, Room 215

PO Box 145490

Salt Lake City, Utah 84111

Salt Lake City, Utah 84114-5490

Office only

Updated 12/2012

BLD # Received by

Date Valuation

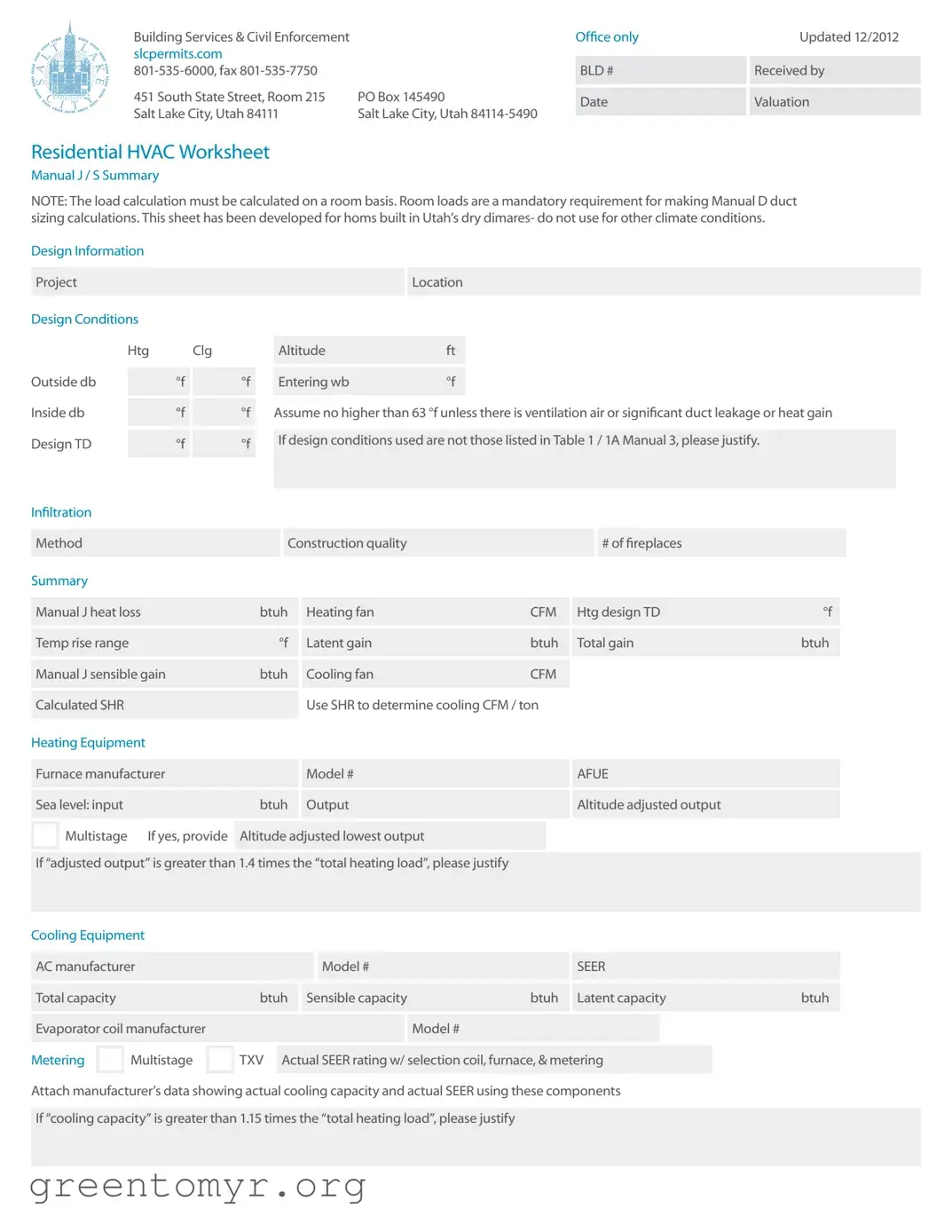

Residential HVAC Worksheet

Manual J / S Summary

NOTE: The load calculation must be calculated on a room basis. Room loads are a mandatory requirement for making Manual D duct sizing calculations. This sheet has been developed for homs built in Utah’s dry dimares- do not use for other climate conditions.

Design Information



















































































































Project





























Location





















































































Design Conditions

















































































































Htg

Clg





Altitude





ft















































































































































Outside db





°f





°f



Entering wb





°f























































































































Inside db





°f





°f



Assume no higher than 63 °f unless there is ventilation air or significant duct leakage or heat gain























































































































Design TD





°f





°f



If design conditions used are not those listed in Table 1 / 1A Manual 3, please justify.





























































































































Infiltration



















































































































































































Method

















Construction quality

















# of fireplaces









































































Summary



















































































































Manual J heat loss









btuh



Heating fan









CFM



Htg design TD



°f

























































































































Temp rise range









to





°f



Latent gain









btuh



Total gain





btuh





























































































































Manual J sensible gain







btuh



Cooling fan









CFM









































































































Use SHR to determine cooling CFM / ton























Calculated SHR





































































































Heating Equipment













































































































Furnace manufacturer















Model #















AFUE































































































































Sea level: input













btuh



Output















Altitude adjusted output



































































Multistage



If yes, provide











































Altitude adjusted lowest output



































































































































If “adjusted output” is greater than 1.4 times the “total heating load”, please justify



















































































Cooling Equipment













































































































AC manufacturer



















Model #















SEER























































































































Total capacity













btuh



Sensible capacity







btuh



Latent capacity



btuh

























































































































Evaporator coil manufacturer



















Model #

































































Multistage



TXV













































Metering



Actual SEER rating w/ selection coil, furnace, & metering











































































Attach manufacturer’s data showing actual cooling capacity and actual SEER using these components

If “cooling capacity” is greater than 1.15 times the “total heating load”, please justify

Manual J / S Summary

Instructions

The load information asked for on the summary must be taken from the actual load calculation completed on the project.

Project

Identify project name, lot number- information that matches the plan submitted.

Location

The city or town must be reasonably close to actual location. Software used may not have the specific location in the database.

Outside Dry Bulb, Inside Dry Bulb

Temperature data should be from Table 1 or Table 1A of ACCA Manual J. It is understood that there may be situations where a slight adjustment to this values is necessary. For example; there may be areas in the Salt Lake Valley where the low temperature is historically lower than the airport temperature. If values are adjusted- please justify the adjustment. Provide both heating (htg) and cooling (clg) design temperatures. If inside

or outside design conditions listed are not the same values listed in Manual J, explain why the different values were used.

Entering WB

The entering wet-bulb represents the default value wet-bulb temperature across the evaporator coil. This will typically be

63 °f (75 °f dry bulb) relative humidity). A higher wb temperature will result from duct leakage, un-insulated duct or ventilation air- any condition that raises the return

air temperature. Use this wb temperature when selecting cooling condenser from manufacturer’s comprehensive data.

Design TD

TD: the temperature difference between inside and outside design temperatures.

Infiltration

Infiltration calculations are based on the Construction Quality. Version 7 of Manual ] uses Best, Average or Poor to evaluate Infiltration. Version 8AE uses Tight, Semi-Tight, Average, Semi-Loose and Loose to evaluate. Version 8 goes into very specific detail for a more accurate number. Note method used on summary. Open firebox fireplaces that draw air from inside the home must be included, even if there is a 4” ‘combustion air’ flex bring air into the fireplace. Sealed, direct vent type fireplaces should

not be counted. Methods include: Simplified

/Default Method- taken from Table 5A; Component Leakage Area Method- calculating infiltration based on individual leakage points taken from Table 5C of Manual J8; or Blower Door Method, where the actual leakage is based on a blower door test on the home.

Manual J Heat Loss

This is the whole house winter heat loss taken directly from the completed attached Load Calculation. Load must account for all factors such as loss building components as well as loss through infiltration, ventilation, and duct losses.

Heating Fan

Heating airflow typically may be lower than cooling cfm. Adjusted to insure the temperature rise across the heat exchanger falls within the range specified by the manufacturer. Software will often do this calculation and provide a correct heating cfm. See Manual S Section 2-6 - Rise (°f) = Output Capacity ÷ (1.1 x heating cfm)

Manufacturer’s Temperature Rise Range

Range taken from manufacturer’s performance data. Various manufacturers may certify ranges from 20 - 70 °f.

Manual J — Sensible Gain

The whole house summer heat gain taken directly from the completed attached Load Calculation. Load must account for all factors including gain through building components, solar gain, infiltration, ventilation and ducts. Also includes the sensible internal gains from appliances and people.

Manual 3 — Latent Gain

The gains due to moisture in the air. Large latent load are typically from moisture migration into the home from outside in humid climates. People, cooking, plants, bathing and laundry washing can all add to the latent load in a home.

Total Gain

The combined total of the sensible and latent gain. May be referred to as Total Cooling Load.

SHR- Sensible Heat Ratio

Use to determine Cooling cfm per ton. The ratio of sensible heat gain to total heat gain. SHR = Sensible Heat Gain ÷ Total Heat Gain. Recommended air flows: If SHR is below 0.80 select 350 cfm / ton; if SHR is between 0.80 & 0.85 select 400 cfm; if SHR is greater than 0.85, select 450 cfm

/ton. Note: This cfm is not the final cfm; additional adjustment may be required for Altitude. See next item- Cooling Fan.

Cooling Fan

Software used to perform the calculation will typically provide a minimum cfm based on the minimum required size of the equipment. This number may be adjusted to meet specific requirements of the home. Heating and Cooling CFM may or may not be the same. The cooling CFM should be around 450 CFM per ton of cooling in Utah’s dry climates. For higher altitudes, CFM must be adjust up as detailed in ACCA / ANSI Manual S. Mountain location should expect Cooling CFM at 500 CFM per ton and higher.

HEATING

Equipment

List specific equipment to be used. This information is not required on the Load Calculation documents, however it must be provided here to verify equipment sizing against calculated loads.

AFUE

The AFUE (Annual Fuel Utilization Efficiency) listed here will be compared to that listed on plans and on energy compliance documents (RES check or other). It must also match the equipment actually installed in the home.

Sea Level Input

The listed input on the furnace label and in manufacturers’ documentation. Input represents the total amount

of heat in the gas at sea level.

Output

The amount a heat available for discharge into the conditioned space. The input less any vent or stack losses, or heat that is carried out with the products of combustion. May be take from manufacturer’s performance data or calculated using input and furnace efficiency.

Altitude Adjusted Output

This number is the actual output that will be attained after the furnace has been adjusted for efficiency and de-rated for altitude (typically 4% for every 1000’ above sea-level, however 2% /1000’ for many 90+ efficient furnaces). Some manufacturers may have different requirements- adjustments should be made per their requirements. Calculations should be attached. Example: 80,000 input 91% efficient furnace in Salt Lake, with manufacturers’ installation instructions specifying 4% / 1000’. 80,000 x .91 x .83 = 60,424 btuh.

Multi-Stage Furnace

Multi-stage and modulating equipment is now available. When comparing to heating load calculated, use the maximum adjusted output to verify the furnace is large enough and the lowest output to insure it is not too large.

Size Justification

Example: If the Total Heating Load = 29954 btuh. A furnace with an adjusted output larger than 45,000 btuh (29954 x 1.5 = 44931) would require an explanation justifying the size.

COOLING

Equipment

List specific equipment to be used. Provide manufacturers comprehensive data for furnace, furnace blower and condenser, with capacities at design conditions highlighted.

Condenser SEER

This SEER (Seasonal Energy Efficiency Ratio) is the listed SEER for this model series, not the exact SEER with components used this system.

Total Capacity

Manufacturers base data is based on ARI Standard 210 / 240 ratings; 95 °f outdoor air temperature, 80 °f db / 67 °f wb entering evaporator. As the Design Conditions

are different than this standard, refer to manufacturers expanded ratings for capacities at actual design conditions. Total capacity is the latent and sensible capacity at design conditions

Sensible Capacity

The sensible only capacity from the manufacturer’s expanded data at design conditions.

Manual D Calculations & Summary

Project

Friction Rate Worksheet & Steps

1Manufacturer’s Blower Data

External static pressure (ESP)

IWC

CFM







Latent Capacity

The latent only capacity from the manufacturer’s expanded data at design conditions. NOTE: One half of the excess latent capacity may be added to the sensible capacity.

Evaporator Coil Make and Model #

List the exact model number for the evaporator coil used this system. If coil is from a different manufacturer than the condenser is used, provide data from both manufacturers verifying actual performance.

Expansion / Metering

Provide the specific metering used- orifice or TXV (thermostat expansion valve). If the manufacturer has several options, list the option used.

Actual SEER Rating

Attach manufacturers’ documentation or ARI report showing actual cooling capacity, and actual SEER using the components used this system. Indoor air handler / furnace blower must be included in this documentation. Do not use ARI (ARHI) data for actual sizing.

Size Justification

If cooling capacity is 15% greater than the calculated Cooling load explain. High latent (moisture) loads can be listed here. Special requirements particular to the customer may also be noted here.

2Device Pressure Losses

Evaporator

Supply register

.03

Other device























Air filter

Return grill

.03

Total device losses (DPL)

IWC











3Available Static Pressure (ASP)

ASP = ( ESP - DPL ) IWC

4Total Effective Length (TEL)

Supply side TEL

ft



Return side TEL

ft











Total effective length (TEL) = supply side TEL + return side TEL ft

5Friction Rate Design Value (FR)

FR = ( ( 100 x ASP ) / TEL ) IWX / 100’

Mechanical Sizing

Name of contractor / designer

Phone Fax

Address

Permit # Lot #

This friction rate (FR) calculated in Step 5 is the rate to be used with a duct calculator or a friction chart for the duct design on this project.

Attach at a minimum, a one line diagram showing the duct system with fittings, sizes, equivalent lengths through fitting and duct lengths.

Vent height (base of duct to roof exit) ft

Boiler or furnace input rating

btu









De-rated input rating (use .83)

btu









Connector rise

ft









Connector run

ft









Connector size

in









Orifice size

in









Water heater input rating

btu









De-rated input rating (.83 minimum)

btu









Connector rise

ft









Connector run

ft









Connector size

in









Orifice size

in









Total heat input of all appliances

btu









Vent size for the system

in









Combustion air size

in²





Signature



Boiler or furnace #2 input rating btu

De-rated input rating (use .83) btu

Connector rise ft

Connector run ft

Connector size in

Orifice size in

Water heater #2 input rating btu

De-rated input rating (.83 minimum) btu

Connector rise ft

Connector run ft

Connector size in

Orifice size in

Attach a complete gas pipe layout & sizing detail to the plan or permit application.

If a manifold is used to connect the appliances on the horizontal, it shall be the same size as the vent.

To the best of my knowledge, I certify that the information contained within this document is true, correct, and meets the requirements of the 2009 International Mechanical Code and International Fuel Gas Code.

Date

Mechanical Sizing Worksheet



b

Example: SLC has a 17% de-ration

How-To





factor. On a 100,000 Btu furnace you

Materials needed to fill out this form are the





multiply 100,000 x .83 = 83,000 Btu’s



c

On the vent sizing this becomes

International fuel gas Code and the Questar



Recommended Good Practices Book.





the fan min. The fan max is the

VENT SIZING





listed input rate example fan





min = 83 and fan max = 100

1

Vent height is measured from the



d

The Btu to ft³ conversion number for



draft diverter or appliance vent





SLC is 890 and the specific gravity of



outlet to the top of the vent cap.





the gas is .60. Divide the new input

2

Connector rise is the height of the vent





rating by 890, 83,000 = 93.258 ft³. 890









connector from the appliance outlet



e

Take the ft³ of input and divide it by the



to the center of the tee in the vent at





number of burners on the appliance,



the point of connection to the vent.





this will give you the ft³ / burner. Then

3

Connector run is the horizontal distance





use the orifice tables in the Questar





handbook to determine the orifice size.



from the appliance vent outlet to the vent.











Example if you have 4 burners: 93.258









4

Go to the International Fuel Gas





ft³ / 4 burners = 23.315 ft³ / 1 burner.



Code Chapter 5. Sizing is done to





Match as close as possible to the



the appropriate gamma table .





Orifice table in the handbook. In this

5

The gamma tables are in Btu and not ft³





sample the orifice size would be (49)

2

Use the International Fuel Gas Code and the

DE-RATING



International Mechanical Code to complete







1

See Questar handbook for a step-by-step



the vent sizing and the combustion air



sizing. See Chapter 5 IFC for the rules and



formula and the required conversion







the tables to fill out this portion of the form.



numbers. To complete this form:







ICBO also has available a commentary on









a Input is de-rated at 4% per



the mechanical code that contains a step-



1000’ in elevation.



by-step examples of how to size the vents.

3The International Mechanical Code commentary also contains examples to size the gas pipe. You must show the pipe lengths, the Btus and the volume of each appliance and show the size of each length of pipe. All tables necessary to size gas pipe are also contained in the International Fuel Gas Code, and in the Questar handbook.

4For Salt Lake City use:

a890 Btu per ft³

bA multiplier of .83

cSpecific gravity of .60

dCombustion air is computed at 1 in² per 3,000 Btu of input of all fuel burning appliances in the room. One duct upper 12” of the room.

EQuestar gas has a training program available to all persons and contractors.

File Breakdown

Fact Name Details
Purpose The Manual J form is used to calculate heating and cooling loads for residential buildings.
Room Basis Calculation Load calculations must be performed on a room-by-room basis to ensure accurate results.
Climate Specificity This form is tailored for homes built in Utah's dry climate and should not be used for other climates.
Design Conditions Users must provide both heating and cooling design temperatures, which should align with values from ACCA Manual J.
Infiltration Methods Infiltration calculations can be based on construction quality and various methods, including the Blower Door Method.
Governing Law The Manual J form adheres to the 2009 International Mechanical Code and International Fuel Gas Code, applicable in Utah.

Guide to Using Manual J

Completing the Manual J form involves gathering specific information about your HVAC project. This process requires attention to detail, as accurate data is crucial for effective heating and cooling calculations. Below are the steps to guide you through filling out the form.

  1. Project Identification: Write down the project name and lot number, ensuring it matches the submitted plans.
  2. Location: Indicate the city or town, keeping it close to the actual project site.
  3. Design Conditions: Fill in the outside dry bulb and inside dry bulb temperatures. Use data from Table 1 or Table 1A of ACCA Manual J. If adjustments are made, provide a justification.
  4. Entering Wet Bulb: Enter the default wet-bulb temperature, usually 63 °F.
  5. Design Temperature Difference: Calculate and enter the temperature difference between inside and outside design temperatures.
  6. Infiltration Method: Note the construction quality and the method used for infiltration calculations.
  7. Heat Loss Calculation: Record the total heat loss in BTUH as calculated in the attached load calculation.
  8. Heating Fan CFM: Enter the heating airflow, ensuring it aligns with the manufacturer's specified temperature rise range.
  9. Sensible Gain: Document the whole house summer heat gain from the completed load calculation.
  10. Latent Gain: Record the gains due to moisture in the air, considering factors like cooking and bathing.
  11. Total Gain: Sum the sensible and latent gains to determine the total cooling load.
  12. Sensible Heat Ratio: Calculate the SHR to determine cooling CFM per ton.
  13. Cooling Fan CFM: Enter the cooling CFM, adjusting for altitude as necessary.
  14. Heating Equipment: List the specific heating equipment to be used, including manufacturer and model number.
  15. Cooling Equipment: Provide details of the cooling equipment, including SEER and total capacity.
  16. Manufacturer’s Data: Attach documentation showing actual cooling capacity and SEER ratings.
  17. Size Justification: If any equipment exceeds specified limits, provide a justification for the sizing.
  18. Mechanical Sizing: Fill out the mechanical sizing worksheet, including all necessary calculations and specifications.
  19. Signature: Sign and date the form to certify that the information is accurate and complies with relevant codes.

Get Answers on Manual J

What is the Manual J form?

The Manual J form is a worksheet used to calculate the heating and cooling loads for residential buildings. This calculation is essential for determining the appropriate size of HVAC systems to ensure comfort and energy efficiency. It takes into account various factors, including the building's design, insulation, and local climate conditions.

Who needs to complete the Manual J form?

Typically, HVAC contractors, engineers, or designers responsible for installing heating and cooling systems in residential properties are required to complete the Manual J form. Homeowners may also need to provide this information when seeking permits for HVAC installations.

What information is required on the Manual J form?

The Manual J form requires detailed information about the project, including:

  1. Project location and design conditions
  2. Heating and cooling loads for each room
  3. Infiltration methods and construction quality
  4. Details about heating and cooling equipment, including manufacturer specifications

All data must be accurate and reflect the actual conditions of the home.

Why is room-by-room load calculation important?

Calculating loads on a room-by-room basis is crucial for several reasons. It ensures that each area of the home receives the correct amount of heating and cooling. This approach helps prevent over-sizing or under-sizing of HVAC equipment, which can lead to inefficiencies, increased energy costs, and discomfort.

What are design conditions, and how are they determined?

Design conditions refer to the specific temperature and humidity levels that the HVAC system must maintain for comfort. These conditions are typically based on local climate data and can be found in the ACCA Manual J tables. Adjustments may be necessary if the actual conditions differ from these standard values.

What is the significance of the entering wet-bulb temperature?

The entering wet-bulb temperature is a critical factor in cooling load calculations. It represents the moisture content in the air and affects the efficiency of the cooling system. Typically set at 63 °F, this value can be adjusted based on specific conditions, such as duct leakage or uninsulated ducts.

What is the difference between sensible and latent heat gain?

Sensible heat gain refers to the temperature increase in the air, while latent heat gain involves moisture in the air. Both types of heat gain must be calculated to determine the total cooling load. Understanding these distinctions helps in designing an effective HVAC system that manages both temperature and humidity.

How does altitude affect heating and cooling calculations?

Altitude plays a significant role in HVAC calculations, particularly in areas like Utah. As altitude increases, the heating output of equipment is typically reduced. Adjustments must be made to account for this change, ensuring that the HVAC system is adequately sized for the specific elevation of the property.

What should I do if my equipment exceeds the calculated loads?

If the heating or cooling capacity of your equipment exceeds the calculated loads by a significant margin, a justification must be provided. This may involve explaining the specific needs of the home, such as high latent loads or unique design features that necessitate additional capacity.

Where can I find assistance with completing the Manual J form?

Assistance with the Manual J form can be found through local HVAC contractors, building permit offices, or professional organizations specializing in HVAC design. Many resources, including software and guidelines, are available to help ensure accurate calculations and compliance with local regulations.

Common mistakes

Filling out the Manual J form is crucial for accurately calculating heating and cooling loads in residential buildings. However, many people make mistakes that can lead to incorrect results. Here are five common errors to watch out for.

One frequent mistake is not providing accurate design conditions. It's essential to enter the correct outside and inside dry bulb temperatures. Using temperatures from a different location or not justifying adjustments can skew the calculations. Always refer to Table 1 or Table 1A of ACCA Manual J for these values, and explain any deviations from the standard.

Another common error involves the infiltration method. People often overlook the construction quality of the building, which directly impacts infiltration calculations. The Manual J guidelines specify different evaluation methods based on construction quality. Be sure to select the appropriate method and document it on the summary to ensure accuracy in the load calculations.

Additionally, many individuals fail to accurately calculate the total heat loss. This figure should account for all factors, including heat loss through building components, ventilation, and duct losses. A comprehensive load calculation is necessary, as omitting any factor can lead to underestimating the heating requirements for the space.

Another mistake often seen is the incorrect entry of equipment specifications. When listing heating and cooling equipment, it’s vital to ensure that the information matches what is actually installed. Mismatches can lead to significant discrepancies in the calculated loads and ultimately affect the efficiency of the HVAC system.

Finally, people sometimes neglect to justify their size adjustments for equipment. If the total heating load exceeds the adjusted output of the furnace or air conditioning unit, an explanation is necessary. This justification helps maintain compliance with regulations and ensures the system operates effectively in the long run.

Documents used along the form

The Manual J form is essential for calculating heating and cooling loads in residential buildings. However, several other documents and forms complement the Manual J to ensure accurate HVAC system design and installation. Each of these documents serves a specific purpose in the overall process, helping contractors and engineers to create efficient and effective HVAC solutions.

  • Manual D: This document focuses on the design of duct systems. It provides guidelines for sizing ducts based on the airflow requirements determined in the Manual J calculations. Proper duct sizing ensures that air is distributed evenly throughout the building, enhancing comfort and energy efficiency.
  • Manual S: This form is used to select heating and cooling equipment based on the load calculations from the Manual J. It helps ensure that the selected equipment is appropriately sized for the calculated heating and cooling loads, which is crucial for system efficiency and longevity.
  • HVAC Equipment Specifications: This document lists the specific models and performance data of the HVAC equipment being installed. It includes information like SEER ratings for cooling systems and AFUE ratings for heating systems, allowing for comparisons against the requirements set forth in the Manual J calculations.
  • Load Calculation Summary: This summary consolidates the results of the Manual J calculations, providing a quick reference for the total heating and cooling loads, including both sensible and latent gains. It is essential for verifying that all factors affecting load calculations have been considered.
  • Infiltration and Ventilation Analysis: This analysis assesses how air enters and exits the building, impacting heating and cooling loads. It provides critical data on infiltration rates, which can significantly affect energy consumption and indoor air quality.
  • Mechanical Sizing Worksheet: This form details the sizing of mechanical components, including ductwork and vents. It ensures that the system is designed to handle the specific loads calculated, promoting efficiency and performance.

Incorporating these documents alongside the Manual J form leads to a comprehensive approach to HVAC system design. Each form plays a vital role in ensuring that the system operates efficiently, meets building codes, and provides optimal comfort for occupants.

Similar forms

  • Manual S: This document focuses on the selection and sizing of HVAC equipment, particularly cooling systems. It provides detailed guidelines to ensure that the equipment selected matches the load calculations derived from Manual J, similar to how Manual J provides the necessary data for accurate HVAC design.
  • Manual D: This manual addresses duct design and sizing. Like Manual J, it relies on load calculations to determine the appropriate duct sizes needed for efficient airflow, ensuring that the HVAC system operates effectively and efficiently in the space.
  • Energy Compliance Documents: These documents verify that a building meets energy efficiency standards. They often incorporate data from Manual J to demonstrate compliance with local energy codes, paralleling the way Manual J supports HVAC system design.
  • ACCA Manuals: The Air Conditioning Contractors of America (ACCA) publishes several manuals that guide HVAC professionals. Manuals like ACCA Manual Q for duct design and Manual T for air distribution rely on the load calculations from Manual J to ensure proper system performance.
  • Building Energy Modeling Software: This software simulates energy consumption in buildings. It often uses inputs from Manual J to predict heating and cooling loads, similar to how Manual J provides the foundation for sizing and selecting HVAC equipment.
  • HVAC Load Calculation Software: Many software programs are designed to perform load calculations based on the principles outlined in Manual J. These tools automate the process of determining heating and cooling loads, much like the Manual J form does manually.
  • ASHRAE Standards: The American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) publishes standards that guide HVAC design. These standards often reference load calculations similar to those in Manual J, ensuring systems are designed for efficiency and comfort.
  • Home Energy Rating System (HERS) Report: This report evaluates a home's energy efficiency. It incorporates data from Manual J to assess HVAC performance, just as Manual J assesses the heating and cooling loads necessary for efficient system operation.

Dos and Don'ts

When filling out the Manual J form, it is essential to follow certain guidelines to ensure accuracy and compliance. Below is a list of things you should and shouldn't do.

  • Do ensure that the load calculation is based on a room-by-room analysis.
  • Do use the appropriate design conditions for your specific climate zone.
  • Do justify any adjustments made to the temperature values provided in the Manual J tables.
  • Do include all relevant equipment specifications, including AFUE and SEER ratings.
  • Do verify that the project location is accurately represented on the form.
  • Don't neglect to account for infiltration and ventilation losses in your calculations.
  • Don't use data from the Manual J form for climates other than those specified for Utah.

Adhering to these guidelines will help ensure that the Manual J form is completed correctly and meets all necessary requirements.

Misconceptions

Misconceptions about the Manual J form can lead to misunderstandings in HVAC load calculations. Here are eight common misconceptions and their clarifications:

  • Misconception 1: The Manual J form is only necessary for new construction.
  • The Manual J form is required for any HVAC installation or upgrade, regardless of whether the building is new or existing. Accurate load calculations are essential for proper system sizing.

  • Misconception 2: Manual J calculations can be done without considering room-by-room analysis.
  • Room-by-room analysis is mandatory for accurate load calculations. This detailed approach ensures that each area receives the appropriate heating and cooling based on its specific needs.

  • Misconception 3: Manual J is the same as Manual D.
  • Manual J focuses on load calculations, while Manual D is concerned with duct design. Both are essential but serve different purposes in HVAC system design.

  • Misconception 4: The Manual J form can be filled out with general climate data.
  • Specific climate data for the project location must be used. The Manual J form is designed for precise calculations based on local conditions, particularly in Utah's dry climate.

  • Misconception 5: Any HVAC software can accurately perform Manual J calculations.
  • Not all HVAC software is created equal. It is crucial to use software that complies with ACCA standards to ensure accurate calculations.

  • Misconception 6: The Manual J form does not require justification for adjusted values.
  • If adjustments to design conditions are made, they must be justified in the form. This ensures transparency and accuracy in the calculations.

  • Misconception 7: Manual J calculations do not account for infiltration.
  • Infiltration is a critical factor in Manual J calculations. The form requires an evaluation of construction quality and other factors that influence air leakage.

  • Misconception 8: Once the Manual J form is completed, no further adjustments are needed.
  • After completing the Manual J form, further adjustments may be necessary based on actual equipment performance and specific project requirements.

Key takeaways

Filling out the Manual J form is a crucial step in ensuring accurate heating and cooling calculations for residential projects. Here are some key takeaways to keep in mind:

  • Room-Based Calculations: Always calculate load on a room-by-room basis. This is essential for accurate duct sizing and overall system efficiency.
  • Climate Specific: The Manual J form is designed specifically for homes in Utah’s dry climates. Using it for other climates may lead to inaccurate results.
  • Design Conditions Matter: Clearly state the design conditions, including outside and inside temperatures. If adjustments are made, provide a justification to ensure clarity.
  • Infiltration Assessment: Assess the construction quality to determine infiltration rates. This impacts the overall heating and cooling loads significantly.
  • Document Everything: Attach all necessary manufacturer data and calculations. This includes information about heating and cooling equipment to verify sizing against calculated loads.
  • Understand Sensible and Latent Gains: Recognize the difference between sensible and latent heat gains. Both contribute to the total cooling load and should be accounted for in your calculations.

By keeping these takeaways in mind, you can effectively navigate the Manual J form and ensure your heating and cooling systems are properly sized and efficient.
